Metpure Quick Connect Female Brass Adapter - 1/4" OD Quick Connect x 1/4" COMP Female Threaded Compression (5 Pack)

• SUPREME QUALITY Durable, corrosion-resistant and lead-free brass female compressed adapter equipped with a gasket to create a tight seal for leak free connections.
• VERSATILE APPLICATIONS Unique and revolutionary 1/4" quick connect to 1/4" female threaded compression adapter makes it a handy and versatile choice for connecting different tubing materials together, such as: copper, PEX, PE, plastic, and water filtration tubing.
• COMPATIBILITY Suitable for both hot and cold water applications, this adapter is compatible with most 1/4" standard water filtrations systems and other applications that require a water supply connection such as: water filtration systems, ice maker lines, drinking fountains, water dispensers, ice machines, coffee machines, aquariums, etc. Adapter may be used in potable and non-potable water distribution systems.
• EASY TO INSTALL No tools required. The quick connect fitting is designed to allow this adapter to be connected quickly for a simple and reliable leak-free connection with a tube. The winged-grip design on the other end allows users to hand-tighten the brass adapter unto a connection quickly without a tool.
• NO SEALANT REQUIRED The EPDM gasket allows a water-tight seal without the use of any sealant/plumber's tape on the connection making this adapter easy and quick to connect.

Description

The heavy duty brass 1/4" OD quick connect x 1/4" female threaded brass compression fitting adapter is great to quickly connect from your water supply valve to your point of use, such as water filtration systems, reverse osmosis systems, ice makers, coffee machines, refrigerator connections, and many more applications. This connector will fit 1/4" OD copper tube, PEX, PE tubing, and plastic tubings. For 1/4" OD tube, look for item T-2W-25 and for 3/8" OD tube, look for item T-3W-25.

What's in the bag:

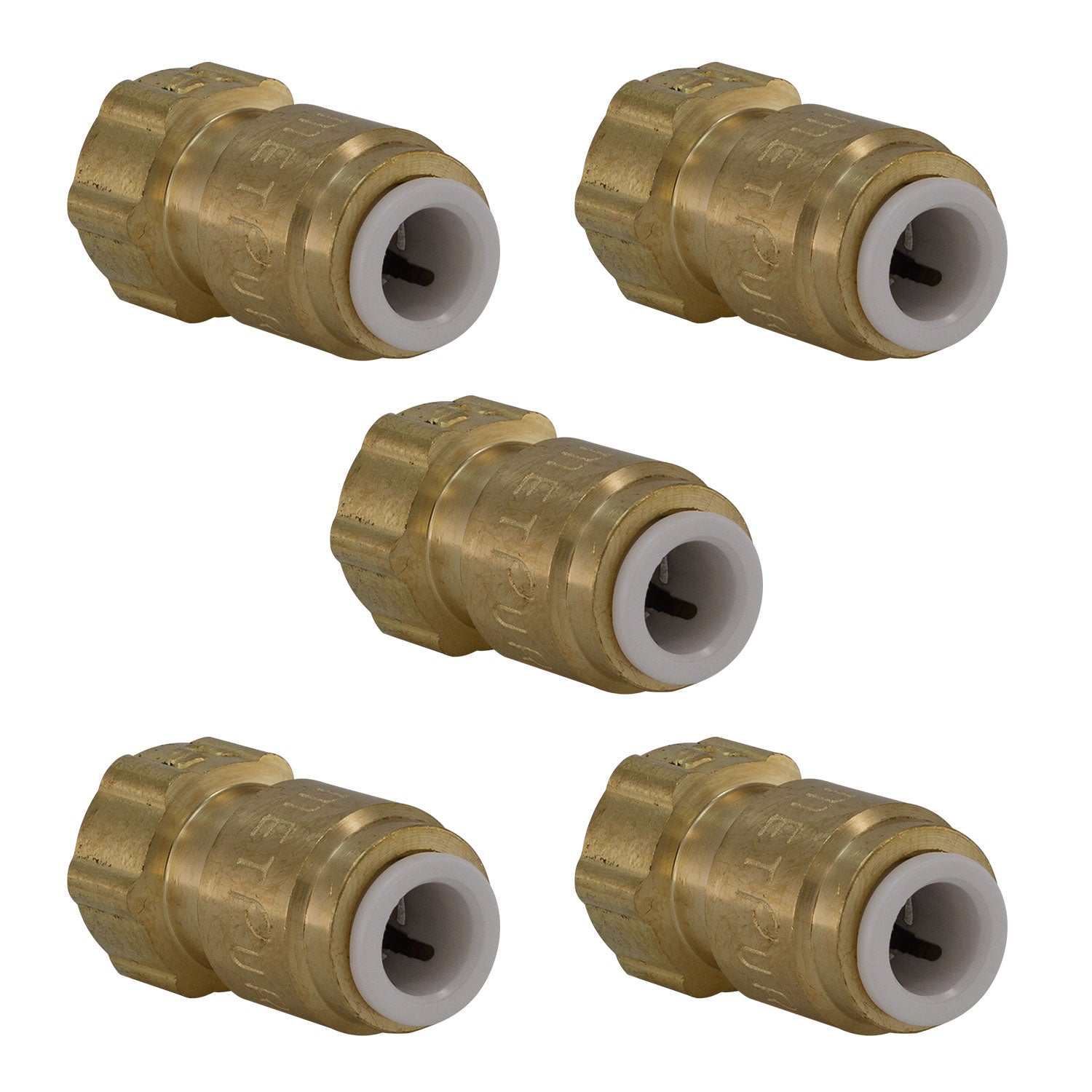

QTY (5): 1/4" OD quick connect x 1/4" female COMP brass adapters

Note to installer:

This adapter is machined and crafted with very high precision; leaks after installs are very rare. The winged-grip design is easy to hand-tighten and loosen without the need for a tool. The included gasket makes the connection tight and leak free. Do not overtighten. Make sure to insert the tubing all the way inside the quick connect for a secure fit. If leaks do occur, remove the tube by pressing on the collet and re-insert. Make sure the inserted tubing end is cut squared and free from any frays or burrs.

Check out all our variable brass adapter options:

1/4" OD QC x 3/8" female COMP brass: FT-QC2FA916B-5

3/8" OD QC x 1/4" female COMP brass: FT-QC3FA716B-5

1/4" OD QC x 1/4" female COMP brass: FT-QC2FA716B-5

3/8" OD QC x 3/8" female COMP brass: FT-QC3FA916B-5

Faqs:

1. What is the primary benefit of the 1/4 compression to 1/4 push-to-connect adapter?
The 1/4 compression to 1/4 push-to-connect adapter allows you to easily connect a variety of tubing materials, including copper, PEX, and PE, to your water supply system.

2. How do I install the 1/4-in OD push-to-connect x 1/4-in compression female adapter?
Installation is quick and easy—simply insert the 1/4" OD tubing into the push-to-connect side of the adapter, and hand-tighten the female compression side.

3. What types of tubing materials are compatible with the 1/4 quick-connect adapter?
This 1/4 quick-connect adapter is compatible with a wide range of tubing materials, including copper, PEX, PE, plastic, and water filtration tubing, making it a highly versatile choice for various plumbing and filtration systems.

4. Can this 1/4 quick-connect adapter be used in both hot and cold water applications?
Yes, the adapter is designed for use in both hot and cold water applications. It is suitable for connecting water filtration systems, ice makers, coffee machines, water dispensers, and more, ensuring reliable performance in a variety of environments.

5. Do I need any sealant or plumber's tape when using this adapter?
No, the 1/4 quick-connect adapter features an EPDM gasket that creates a tight, leak-free seal without the need for sealant or plumber's tape. This makes installation quick and hassle-free.

6. Is this adapter suitable for potable water applications?
Yes, the adapter is designed for use in both potable and non-potable water distribution systems. It's perfect for use in drinking fountains, water filtration systems, reverse osmosis systems, and more.

7. How tight should I install the adapter?
The adapter is precision-machined to prevent leaks, and the winged-grip design allows for easy hand-tightening. Be sure not to overtighten, as this can damage the connection. If a leak occurs, press the collet to remove the tubing, cut the end cleanly, and re-insert it for a secure fit.
